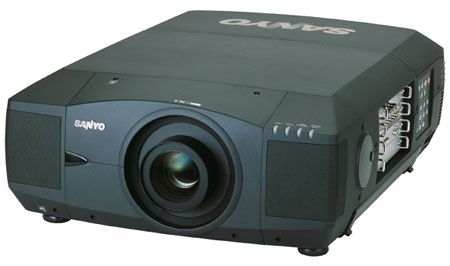

Sanyo PLC-XF46N Large Fixed 3LCD Video Projector
Sanyo PLC-XF46N MSRP: $29,995
Overview
WORLD’S FIRST 12,000 ANSI LUMENS LCD PROJECTOR!
Utilizing four high-output 300-watt UHP lamps as its light source,
the Sanyo PLC-XF46N projector delivers an amazing 12,000 ANSI lumens of
brightness. Stacking two projectors in the twin-stack
configuration can achieve up to 24,000 ANSI lumens of
brightness.
OUTSTANDING CONTRAST RATIO – 1300:1
The PLC-XF46N projector contains a new liquid crystal panel with highcontrast
optical system that achieves a contrast ratio as large as
1300:1, exhibiting natural and smooth gradation.
AUTO PICTURE CONTROL
By optimizing the dynamic range of luminance signals and
reflecting the gamma settings and offsets, the PLC-XF46N
projector displays the most genuine contrast and sharpness of images
according their characteristics. Remarkable depth and
outstanding picture quality are results of auto picture control.
VERTICAL/HORIZONTAL EDGE ENHANCEMENT
Images so crisp and smooth that are only made possible by a
seamless edge enhancement technique. Enhancing image
outlines while minimizing granular noise emphasis, the Sanyo PLCXF46N
projector generates sharp and realistic images.
NETWORK CONTROL/ADMINISTRATION
An optional PJ-Net Organizer network board allows for simple
control and management of projectors via a CAT5 network
connection. The administrator can use a network management
software called PJ Master (optional accessory), and be able to
centrally control all PJ-Net Organizer-mounted projectors within
the network.
24/7* OPERATION
A newly developed liquid crystal panel with an optical
compensator that creates linear polarization, together with
improved optical block cooling system, gives the PLC-XF46N the
capability of being operated on a 24/7* basis.
Features
- 12,000 ANSI Lumens (4-lamp mode), 6,000 ANSI Lumens (2-lamp mode)
- True XGA (1024 x 768) Resolution
- Compressed UXGA Resolution
- 1300:1 Contrast Ratio
- Detachable Interface Panels (Multi-Versatile Platform)
- Optional Network Control/Admin. Board
- Four Lamp System
- Efficient Lamp Management System
- Digital Visual Interface (DVI-I)
- X-Y Power Lens Shift (Up/Down/Left/Right)
- RS-232 In/Out
- HDTV Compatible
- One-Touch Lens Mount System
- A Variety of Lens Options Available
- Lenses Sold Seperately
Specifications
| Resolution |
XGA (1024 x 768) |
| Brightness (typical) |
12,000 ANSI Lumens (4-lamp mode)
6,000 ANSI Lumens (2-lamp mode) |
| Uniformity |
90% (corner to corner) |
| LCD Panel System |
1.8” TFT polysilicon type w/micro lens x 3 |
| Number of Pixels |
2,359,296 (786,432 x 3) |
| Contrast Ratio |
1,300:1 (Full on/off) |
| Projection Lens |
Lens Sold Separately |
| Image Size |
Dependent on Lens |
| Aspect Ratio |
4:3 |
| Throw Distance |
Dependent on Lens |
| Zoom/Focus |
Dependent on Lens |
| Throw Ratio |
Dependent on Lens |
| Zoom Ratio |
Dependent on Lens |
| Power Lens Shift |
Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Left/Right Ratio 3:2 – 2:3 or 1:1 (Dependent on Lens) |
| Digital Keystone Correction |
+/- 30° (Vertical) |
| Projection Lamp |
300W UHP x 4 |
| Scanning Frequency |
H Sync: 15-120kHz, V Sync: 50-120Hz |
| Dot Clock |
230 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 |
| Computer Compatibility |
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC |
| Voltage |
120V AC 16A Max, 50//60 Hz (auto sense/select) |
| BTU Rating |
5797 |
| dB Rating |
51.0 |
| Power Consumption |
1700W |
| Dimensions (WxHxD) |
22.9”x9.9”x30.8” (not including Adjustable Feet) |
| Net Weight |
80.5lbs (w/o lens) |
| User Maintenance |
Clean air filters, replace lamp assembly |
Detachable Input Panels
POA-MD18DVI |
Digital Visual Interface (DVI-I w/HDCP) • Left & Right
Audio (RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD16VD1 |
RGB & Component (5-BNC) • Left & Right Audio
(RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD03VD2A |
Composite & Y/C (2-BNC) • S-Video (Mini DIN 4-pin)
• Left & Right Audio (RCA x 2) |
| POA-MD04VGA |
VGA (D-Sub 15) • Left & Right Audio (RCA x 2)
• Control (Min DIN 8-pin) |
| Fixed Input/Output Panel |
Serial in & Serial out (D-Sub 9 x 2) • Audio out (RCA x 2)
• USB (type B) • Wired RC jack (Stereo mini) |
| Included Accessories |
Wired/Wireless I/R Remote Control • Two “AA” type
batteries • Owner’s manual (CD-ROM & Quick
Reference Guide) • AC power cord* • VGA Cable •
Wired remote cable • Real Color Manager Pro CD-ROM
• Lens Mount Adapters (POA-LNA02 & POA-LNA01) |
| Optional Accessories |
POA-MD08HD - HD-SDI Input Board
POA-MD13NET - Network Board
POA-MD15SDI - SD-SDI Input Board
POA-MD17SDID - HD-SDI & SD-SDI Input Board
POA-LNA02 - Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
PLCCSE14 - Hard Shipping Case
6103274928 - Replacement Lamp |
| Warranty |
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty |
|
