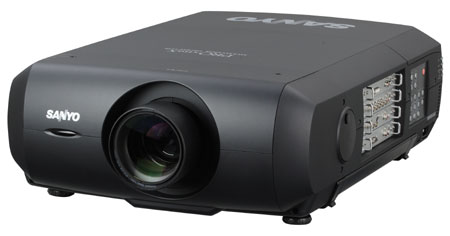

Sanyo PLC-XF47 Large Fixed 3LCD Video Projector
Sanyo PLC-XF47 MSRP: $29,995
Overview
WORLD’S FIRST 15,000 ANSI LUMENS LCD PROJECTOR!
Utilizing four high-output 330-watt NSHA lamps as its light
source, the Sanyo PLC-XF47 projector delivers an amazing 15,000 ANSI lumens
of brightness. Stacking two projectors in the twin-stack
configuration can achieve up to 30,000 ANSI lumens of
brightness.
DURABLE In-Organic Optical System (D.I.O.S.)
Sanyo's PLC-XF47 projector contains a new durable liquid crystal panel for
extended projector usage and combined with a high-contrast
optical system that achieves a contrast ratio of 2000:1.
FLEXIBLE SET-UP
Option Boards, U/D/L/R Lens shift and Option lenses make for a
very versatile projector.
UNIQUE COLOR MANAGEMENT SYSTEM
Sanyo’s color management system allows you to change the
shading of a specific color in the image to a desired shade
without affecting other colors or adjustment, such as tint or white
balance.
NETWORK CONTROL/ADMINISTRATION
An optional PJ-Net Organizer network board allows for simple
control and management of projectors via a CAT5 network
connection. The administrator can use a network management
software called PJ Master (optional accessory), and be able to
centrally control all PJ-Net Organizer-mounted projectors within
the network.
24/7* OPERATION
A newly developed liquid crystal panel with an optical
compensator that creates linear polarization, together with
improved optical block cooling system, gives the Sanyo PLC-XF47 projector the
capability of being operated on a 24/7* basis.
Features
- World's First 15,000 ANSI Lumens LCD Projector
- True XGA (1024 x 768) Resolution
- 2,000:1 Contrast Ratio
- 4.3 Aspect Ratio
- Durable In-Organic Optical System (D.I.O.S.)
- Flexible Set-up
- Unique Color Management System
- Network Control/Administration
- 24/7 Operation with Optical Block Cooling System
- Lens Sold Separetly
- Wired/Wireless I/R Remote Control Included
- AC Power Cord Included
Specifications
| Resolution |
XGA (1024 x 768) |
| Brightness (typical) |
15,000 ANSI Lumens (4-lamp mode)
7,500 ANSI Lumens (2-lamp mode) |
| Uniformity |
90% (corner to corner) |
| LCD Panel System |
1.8” TFT polysilicon type w/micro lens x 3 |
| Number of Pixels |
2,359,296 (786,432 x 3) |
| Contrast Ratio |
2,000:1 (Full on/off) |
| Projection Lens |
Lens Sold Separately |
| Image Size |
Dependent on Lens |
| Aspect Ratio |
4:3 |
| Throw Distance |
Dependent on Lens |
| Zoom/Focus |
Dependent on Lens |
| Throw Ratio |
Dependent on Lens |
| Zoom Ratio |
Dependent on Lens |
| Power Lens Shift |
Up/Down Ratio 10:0 – 0:10 or 8:1 – 1:8
Left/Right Ratio 3:2 – 2:3 (Dependent on Lens) |
| Digital Keystone Correction |
+/- 40° (Vertical) +/- 20° (Horizontal) |
| Projection Lamp |
330W NSHA x 4 |
| Scanning Frequency |
H Sync: 15-120kHz, V Sync: 48-120Hz |
| Dot Clock |
230 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 |
| Computer Compatibility |
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA, MAC |
| Voltage |
200-240V AC 9.7A Max, 50//60 Hz (auto sense/select) |
| BTU Rating |
5800 |
| dB Rating |
51dBA (Eco mode) |
| Power Consumption |
1700W |
| Dimensions (WxHxD) |
22.9”x9.9”x32.0” (not including Adjustable Feet) |
| Net Weight |
80.5lbs (w/o lens) |
| User Maintenance |
Clean air filters, replace lamp assembly |
Detachable Input Panels
Board 1 |
Digital Visual Interface (DVI-D)• Analog(D-sub15) |
| Board 2 |
RGBHV & Component &Composite(5-BNC)
• S-video (Mini DIN 4-pin) |
| Board 3 |
Open for input |
| Board 4 |
Open for input |
| Fixed Input/Output Panel |
Serial in & Serial out (D-Sub 9 x 2) • USB (type B) •
Wired RC jack (Stereo mini) |
| Included Accessories |
Wired/Wireless I/R Remote Control • Two “AA” type
batteries • Owner’s manual (CD-ROM & Quick
Reference Guide) • AC power cord • VGA Cable
• Lens Mount Adapters (POA-LNA02 & POA-LNA01)
• Real Color Manager Pro CD-ROM |
| Optional Accessories |
POA-MD18DVI – DVI-Board
POA-MD13NET2 - Network Board
POA-MD21WARP- WARP&Blending Board
POA-MD17SDID – HD-SDI & SD-SDI Input Board
POA-LNA02 - Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
POA-CA-RC30- Wired Remote Cable
610 334 6267 - Replacement Lamp |
| Warranty |
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty |
|
