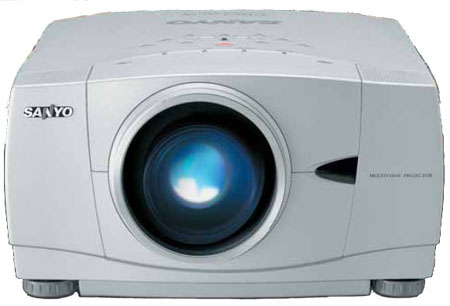

Sanyo PLC-XP57L Multimedia LCD Video Projector
Sanyo PLC-XP57L MSRP: $8,995
Overview
5,500 ANSI Lumens LCD projector
Utilizing high-output 318-watt UHP lamps as its light source, the PLC-XP57L delivers an amazing 5,500 ANSI lumens of brightness. Stacking two projectors in the twin-stack configuration can achieve up to 11,000 ANSI lumens of brightness.
Outstanding Contrast Ratio – 1000:1
PLC-XP57L contains an optical compensator with a High-Contrast Optical System that achieves a contrast ratio as large as 1000:1, exhibiting more natural and smooth gradation.
Full 10-BIT digital image processing
With an IC that uses a full 10-bit digital processing, PLC-XP57L delivers four times more color gradation steps than a conventional projector. As a result, it projects beautiful images with impressive color precision, rendering even tiny nuances in expressive details.
Network control with PJ-NET organizer plus II
An optional PJ-Net Organizer Plus II allows for simple control and management of projectors via a CAT5 network connection. The user can use an optional network management software called PJ Master, and be able to centrally control all PJ-Net Organizer-mounted projectors within the network. The PJ-Net
Organizer Plus II has SNMP capability and allows connected computers to capture and modify the projected image, so other users will be able to write texts and draw figures on the captured image on their computers using drawing tools.
Upward / Downward projection
The PLC-XP57L can be tilted upward to facilitate ceiling-mount and floor mount installation.
Vertical/Horizontal edge enhancement
Images so crisp and smooth that is only made possible by the seamless edge enhancement technique. Enhancing image outlines while minimizing granular noise emphasis, the PLCXP57L generates sharp and realistic images.
24/7 operation
A newly developed liquid crystal panel with an optical compensator that creates linear polarization, together with improved optical block cooling system, gives the PLC-XP57L the capability of being operated on a 24/7 basis.
Features
- 5500 ANSI Lumens
- True XGA (1024 x 768) Resolution
- Digital Visual Interface (DVI-D w/HDCP)
- ECO Mode
- Network Connectivity (with Optional PJ-NET Organizer Plus II)
- Color Management System
- HDTV Compatible
- X-Y Digital Keystone Correction
- Upward/Downward Projection
- Verticle/Horizontal Edge Enhancement
- Customizable Start-up Logo
- Variable Audio Out
- Whisper Quiet Fan (36 dBA in Eco Mode)
- Power Lens Shift (Up/Down)
- One-Touch Lens Mount System
- A Variety of Optional Lenses Available
Specifications
| Resolution |
XGA (1024 x 768) |
| Brightness (typical) |
5500 ANSI Lumens |
| Uniformity |
90% |
| LCD Panel System |
1.3” TFT Poly-Silicon x 3 |
| Number of Pixels |
2,359,296 (786,432 x 3) |
| Contrast Ratio |
1000:1 (full on/off) |
| Projection Image (diagonal) |
31” – 400” |
| Aspect Ratio |
4:3 |
| Throw Distance |
Dependent on Lens (4.6’ – 48.2’ w/LNS-S30) |
| Zoom/Focus |
Dependent on Lens |
| Up/Down Ratio |
1:1 (LNS-W32) or 10:0 – 1:1 (others) |
| Digital Keystone Correction |
Vert. +/- 35°, Horiz. +/- 15° |
| Projection System |
Dichroic mirror & X prism w/PBS |
| Projection Lens |
Lens Sold Separately |
| Lens Throw Ratio |
Dependent on Lens (1.8-2.3:1 w/LNS-S30) |
| Projection Lamp |
318W UHP |
| Scanning Frequency |
H 15-100kHz, V 48-100Hz (auto sense/select) |
| Dot Clock |
180 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NNTSC4.43 |
| Computer Compatibility |
UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA |
| Sound Output |
Two-piece stereo 2W rms |
| Voltage |
100-240V AC 50/60Hz (auto sense/select) |
| BTU Rating |
1638 |
| DB Rating |
36.0 (eco mode) |
| Power Consumption |
480W |
| Dimensions (WxHxD) |
12.6” x 6.6” x 16.9” |
| Net Weight |
17.4 lbs. |
| User Maintenance |
Clean air filters, replace lamp assembly |
| Input Terminal Panel 1 |
D-Sub 15 x 1 (In/Monitor Out)
DVI-D x 1 (w/HDCP)
Audio x 1 (In/Monitor Out: stereo mini jack) |
| Input Terminal Panel 2 |
RGBHV or Composite/Component Video (BNC x 5)
Audio x 1 (stereo mini jack) |
| Input Terminal Panel 3 |
Composite/Component Video (RCA x 3)
S-Video x 1
L & R Audio (RCA x 2) |
| Additional Input Terminals |
Wired remote control jack x 1 (stereo mini jack)
USB x 1 (type B)
Control Port x 1 (mini Din 8-pin) |
| Output Terminals |
D-Sub 15 x 1 (Input1/Monitor Out)
Variable audio x 1 (Input1/Monitor Out: stereo mini jack) |
| Included Accessories |
Wired/Wireless IR Remote Control w/Mouse Pad and Laser Pointer, 2 AA Batteries, AC power cord, VGA Cable, Serial/USB Control Cables, PIN Label, Lens Attachment (POA-LNA03), Owners manual, Lens replacement manual |
| Optional Accessories |
PJ-Net Organizer Plus II (POA-PN03), Filer Box (POA-FBOX130), POA-FIL130 (Replacement Filter for POA-FBOX130), Replacement Lamp (6103287362), Optional Lenses |
| Warranty |
Three years parts and labour, 90 days original lamp; Quick Repair Program under warranty |
|
