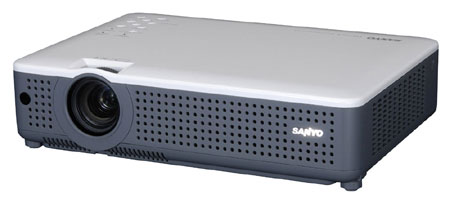

Sanyo PLC-XU78 Ultra Portable LCD Video Projector

Sanyo PLC-XU78 MSRP: $2,295

Overview

Ultra-compact, fully portable XGA design

Not much larger than a laptop PC, the PLC-XU78 weighs less than 6.8 pounds and delivers true XGA picture quality in a versatile, go-anywhere system. May also be ceiling or inverse mounted for enhanced versatility.

F1.65-1.81 zoom lens with 1/2X TO 16X digital zoom

Comes with its own 1:1.2 zoom lens, which can throw a crisp, bright 100” diagonal image from a distance of only 11.5’. 1/2X to 16X Digital Zoom helps highlight important program segments.

New progressive IC with 3-2 and 2-2 pulldown

SANYO’s proprietary progressive integrated circuit significantly improves the appearance of moving images. This IC incorporates 3-2 and 2-2 pulldown technology, which can effectively double the resolution of images from DVD playback.

Dual D-SUB15 inputs

The PLC-XU78 offers excellent flexibility via a pair of D-Sub 15 input terminals. Using an optional adapter cable, it can even accept component video signals. One of the D-Sub 15 terminals can even be switched between input and monitor output for greater programming flexibility.

Black Board mode

For more effective presentations in rooms with dark-surfaced walls (i.e.: green boards), the PLC-XU78 projector features BLACK BOARD MODE, which adjusts white balance and gamma correction automatically to project clear image without a screen.

Security features

PIN code lock provides settings for security. The PLC-XU78 projector cannot be operated without a four digit number.

User-specified start-up screen

To create a smoother, more professional presentation, logo and image files may be captured for display during the projector’s countdown sequence at start-up.

Variable audio out

This convenient feature on the PLC-XU78 allows the user to control the audio level right from the projector. The centralization of video and audio controls from the projector helps in educational applications by ensuring the technical quality of the presentation and eliminating the fuss of separate outside audio controls.

Features

• Ultra-Compact, Fully Portable XGA Design
• F1.65-1.81 Zoom Lens with 1/2X to 16X Digital Zoom
• New Progressive IC with 3-2 and 2-2 Pulldown
• 3000 ANSI Lumens
• Dual D-Sub15 Inputs
• 450:1 Contrast Ratio
• 4:3 Aspect Ratio
• Black Board Mode
• Security Features
• User-Specified Start-Up Screen
• Variable Audio Out
• May be Ceiling or Inverse Mounted for Enhanced Versatility
• Weighs Less Than 6.8 Pounds

Specifications

• Resolution XGA (1024 x 768)
• Brightness 3000 ANSI Lumens
• Uniformity 85% (corner to center)
• LCD Panel System 0.63” TFT Poly x 3
• Number of Pixels 2,359,296 (786,432 x 3)
• Contrast Ratio 450:1
• Image Size (diagonal) 40” – 300”
• Aspect Ratio 4:3
• Throw Distance 4.6' - 41.3'
• Zoom/Focus Manual
• Zoom Ratio 1:1.2
• Up/Down Ratio 9:1
• Digital Keystone Correction Vertical: +/- 20
• Projection System Polarized Beam Splitter optical system
• Projection Lens F1.65-1.81/f0.89”-1.06”
• Lens Throw Ratio 1.72-2.07:1
• Projection Lamp 200W UHP
• Scanning Frequency H Sync: 15-100kHz, V Sync: 50-100Hz
• Dot Clock 140MHz
• Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
• Computer Compatibility UXGA, WXGA, SXGA, XGA, SVGA, VGA, MAC
• Sound Output One-piece, 1-watt Mono
• Voltage 100-240V AC (auto Voltage) ; 50/60 Hz
• BTU Rating 836
• dB Rating 32dB / 28dB (normal/eco)
• Power Consumption 245W / 185W (normal/eco)
• Dimensions (WxHxD) 13.2” x 3.1” x 9.4” (not including Adjustable Feet)
• Net Weight 6.8 lbs.
• User Maintenance Clean air filters, replace lamp assembly
• PC Input Terminals
  • D-Sub15 x 2 (1 switchable in/monitor out)
  • Audio x 1 (Stereo mini-jack : common)
• Video Input Terminals
  • Composite Video (RCA x 1)
  • S-Video (Mini-DIN 4-pin)
  • R & L/mono audio (RCA x 2)
  • Component Video (D-Sub15 input w/optional cable)
  • Audio for Component Video (stereo mini-jack : common)
• Output Terminals
  • D-Sub15 x 1 (switchable In/monitor out)
  • Variable Audio (stereo mini-jack)
• Included Accessories I/R Remote Control, 2 AA Batteries, Owner’s Manual, VGA Cable, Lens Cap, PIN Code Label, AC Power Supply Cord
• Service Port Mini DIN 8-pin
• Warranty Three years parts and labor; 1 year or 500 hours on original lamp; Quick Repair Program under warranty
