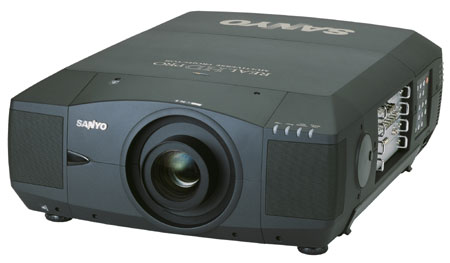

Sanyo PLV-HD100 Large Fixed 3LCD Video Projector
Sanyo PLV-HD100 MSRP: ***
Overview
24P TRUE HD RESOLUTION PROJECTOR
The Sanyo PLV-HD100 3LCD projector utilizes three true high definition resolution (1920x1080) LCD panels to reproduce high definition sources as they were meant to be seen. The PLV-HD100 provides 24P capability for film playback situation.
OUTSTANDING CONTRAST RATIO – 1000:1
Through its new high-contrast optical system, utilizing micro lens technology, the PLV-HD100 projector is able to achieve an outstanding contrast ratio of 1000:1. A micro lens is integrated into each individual pixel on the three LCD panels increasing light efficiency, resulting in significantly brighter images.
5500 ANSI LUMENS
Utilizing four high-output 250 watt UHP lamps as its light source, the PLV-HD100 delivers an incredible 5500 ANSI lumens of brightness.
SUPERIOR COLOR REPRODUCTION
The PLV-HD100 projector provides superior color purity with SANYO’s
6500º K color temperature optical system and superb HDTV
image performance through a newly developed 12-bit
Progressive Scan integrated circuit. As a result of 30-bit color
processing (10bit each for R/G/B), 2-3 pulldown and 1080i to
progressive conversion, the reproduction of moving images is
highly improved.
CUSTOMIZABLE START-UP LOGO
The Sanyo PLV-HD100 projector can capture logo files to display during the
projector’s countdown sequence at startup.
EFFICIENT LAMP MANAGEMENT SYSTEM
Monitors the status of each lamp and can display status and
cumulative hours of use on-screen. When full brightness is not
required, two of the lamps may be switched off. Also, if a lamp
expires while either four or two lamps are in use, the fail-safe
operation feature switches to the matched pair of good lamps.
Features
- True HD Resolution (1920 x 1080)
- 5500 ANSI Lumens
- 1000:1 Contrast Ratio
- 24P Capability for Film Playback
- 84lbs, 22.9" x 9.9" x 30.8" (W x H x D)
- Four 250-Watt UHP Lamps
- Efficient Lamp Management System
- Customizable Start-up Logo
- Superior Color Reproduction
- 12-bit Progressive Scan Integrated Circuit
- Power Lens Shift (Up/Down/Left/Right)
- A Variety of Lens Options Available
- Lenses Sold Separately
Specifications
| Resolution |
True High Definition (1920 x 1080) |
| Brightness (typical) |
5500 ANSI Lumens (4-lamp mode)
2750 ANSI Lumens (2-lamp mode) |
| Uniformity |
90% (corner to corner) |
| LCD Panel System |
1.65” TFT polysilicon type w/micro lens x 3 |
| Number of Pixels |
6,220,800 (2,073,600 x 3) |
| Contrast Ratio |
1,000:1 (Full on/off) |
| Projection Lens |
Lens Sold Separately |
| Image Size |
Dependent on Lens |
| Aspect Ratio |
16:9 |
| Throw Distance |
Dependent on Lens |
| Zoom/Focus |
Dependent on Lens |
| Throw Ratio |
Dependent on Lens |
| Zoom Ratio |
Dependent on Lens |
| Power Lens Shift |
Up/Down Ratio 7:-1 – -1:7 or 8:1 – 1:8 or 1:1
Left/Right Ratio 3:2 – 2:3 |
| Digital Keystone Correction |
No |
| Projection Lamp |
250W UHP x 4 |
| Scanning Frequency |
H Sync: 15-120kHz, V Sync: 50-120Hz |
| Dot Clock |
230 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 |
| Computer Compatibility |
True HD, UXGA, SXGA, XGA, SVGA, VGA, MAC |
| Voltage |
120-240V AC 50/60 Hz (auto sense/select) |
| BTU Rating |
5118 |
| dB Rating |
46.0 |
| Power Consumption |
1500W |
| Dimensions (WxHxD) |
22.9”x9.9”x30.8” |
| Net Weight |
84.0 lbs. |
| User Maintenance |
Clean air filters, replace lamp assembly |
Detachable Input Panels
Input 1
(POA-MD17SDID) |
Dual SDI Input (HD/SD SDI) / SDI Output |
Input 2
(POA-MD16VD1) |
RGBHV & Component (BNC x 5) • Left and Right Audio
(RCA x 2) • Control (Min DIN 8-pin) |
Input 3
(POA-MD18DVI) |
Digital Visual Interface (DVI-I w/HDCP) • Left & Right
Audio (RCA x 2) • Control (Min DIN 8-pin) |
| Input 4 |
Open |
| Fixed Input/Output Panel |
Serial in & Serial out (D-Sub 9 x 2) • Audio out (RCA x 2)
• USB (type B) • Wired RC jack (Stereo mini) |
| Included Accessories |
Wired/Wireless I/R Remote Control with Mouse Pad and
Laser Pointer
• AC power cord • Wired remote cable
• PS/2, Serial, MAC Control cables • Real Color
Manager CD-ROM • Lens Mount Adapters (POA-LNA02
& POA-LNA01) • 2 “AA” batteries • Light Block Sheets
• Dust cover • Owner’s manual |
| Optional Accessories |
POA-MD08HD - HD-SDI Input Board
POA-MD13NET2 - Network Board
POA-MD09VD3 - Faroudja™ Input Board
POA-MD04VGA - D-Sub15 Input Board
POA-MD03VD2A - Video Y/C & S-Video Input Board
POA-LNA02 - Lens Mount Adapter (LNS-W02/M01/S01)
POA-LNA01 - Lens Mount Adapter (for all other lenses)
6103051130 - Replacement Lamp
PLC-CSE14 - Hard Shipping Case |
| Warranty |
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty |
|
