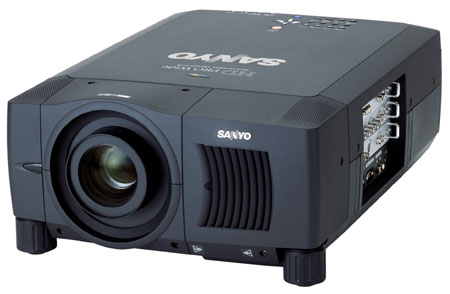

Sanyo PLV-WF10 Multimedia 3LCD Video Projector
Sanyo PLV-WF10 MSRP: $12,995
Overview
Through its high-contrast optical system, utilizing micro lens technology, the Sanyo PLV-WF10 projector achieves a contrast ratio of 900:1. A micro lens is integrated into each individual pixel on the three LCD panels increasing light efficiency, resulting in significantly brighter images. A newly developed progressive integrated circuit provides highly improved playback of moving images. 1080 interlaced signals are converted into progressive signals while 2-3 pulldown doubles the resolution of images from DVD playback.
Features
- 4000 ANSI Lumens (Typical)
- Wide XGA (1366 x 768) Resolution
- 900:1 Contrast Ratio
- Progressive IC for 3-2 Pulldown and 1080i to progressive conversion
- Real Color Manager System
- Efficient Two Lamp System
- Power Lens Shift (Up/Down)
- Optional Network Control/Administration
- Real Color Manager System
- Easy Lens Replacement
(Wired/Wireless I/R Remote Control w/Mouse Pad and Laser Pointer Included)
- 46.3 lbs. Net Weight
Specifications
| Resolution |
Wide XGA (1366 x 768) |
| Brightness (typical) |
4000 ANSI Lumens (with optional LNS-W02 lens)
4700 ANSI Lumens (with optional LNS-S03 lens) |
| Uniformity |
90% (corner to corner) |
| LCD Panel System |
1.21” TFT polysilicon type w/micro lens x 3 |
| Number of Pixels |
3,147,254 (1,049,088 x 3) |
| Contrast Ratio |
900:1 (full on/off) |
| Projection Lens |
Lens Sold Separately |
| Projection Image (diag.) |
30" - 400" |
| Aspect Ratio |
16:9 |
| Throw Distance |
Dependent on Lens |
| Zoom/Focus |
Dependent on Lens |
| Throw Ratio |
Dependent on Lens |
| Zoom Ratio |
Dependent on Lens |
| Power Lens Shift |
Manual (Up/Down/Left/Right) |
| Up/Down/Left/Right Ratio |
Up/Down Ratio 10:-3 - -3:10 or 6:-1 - -1:6 |
| Digital Keystone Correction |
Horizontal +/- 10° |
| Projection Lamp |
250W UHP x 2 |
| Scanning Frequency |
H Sync: 15-120kHz, V Sync: 50-120Hz |
| Dot Clock |
230 MHz |
| Color System |
PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43 |
| Computer Compatibility |
UXGA, SXGA, WXGA, XGA, SVGA, VGA, MAC |
| Voltage |
100-240V AC; 50/60 Hz |
| BTU Rating |
2388 |
| dB Rating |
46.0 |
| Power Consumption |
700W |
| Dimensions (WxHxD) |
17.3” x 9.1” x 23.8” |
| Net Weight |
46.3 lbs |
| User Maintenance |
Clean air filters, replace lamp assembly |
Detachable Input Panels
POA-MD11DVI |
Digital Visual Interface (DVI-I) • Left & Right Audio
(RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD16VD1 |
RGB & Component (BNC x 5) • Left & Right Audio
(RCA x 2) • Control (Min DIN 8-pin) |
| POA-MD03VD2A |
Composite & Y/C (BNC x 2) • S-Video
• Left & Right Audio (RCA x 2) |
| Fixed Input/Output Panel |
Serial in & Serial out (D-Sub 9 x 2) • Audio out
(RCA x 2) • USB (Type B) • Wired RC jack (Stereo mini) |
| Included Accessories |
Wired/Wireless I/R Remote Control w/Mouse Pad and
Laser Pointer • AC power cord x3 • DVI cable
• DVI/VGA cable • MAC/VGA Adapter • Wired remote
cable • PS/2, Serial, MAC Mouse Control Cables
• Lens Mount Adapters (POA-LNA02 & POA-LNA01)
• Real Color Manager CD-ROM • Light Block Sheets
• Dust Cover • Owner’s manual |
| Optional Accessories |
POA-SFTUPG3HDCP – DVI w/ HDCP input and upgrade
POA-MD08HD – HD-SDI Input Board
POA-MD09VD3 – FaroudjaTM Input Board
POA-MD04VGA – VGA (D-Sub 15) Input Board
POA-MD13NET – Network Board
POA-MD15SDI – SD-SDI Board
POA-LNA02 – Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 – Lens Mount Adapter (for all other lenses)
6103093802 – Replacement Lamp |
| Warranty |
Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty |
|
