Sanyo PLV-WF20 Multimedia 3LCD Video Projector

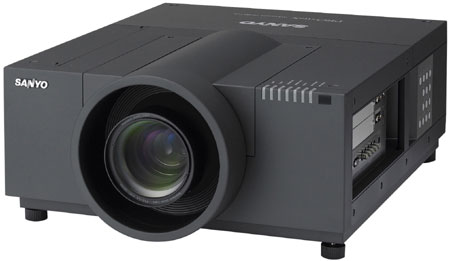

Sanyo PLV-WF20 Video Projector

Sanyo PLV-WF20 MSRP: ***

Overview

IMPRESSVIELY BRIGHT, HIGH CONTRAST WIDE IMAGE
Utilizing two high–output 330-watt NSHA lamps as its light source, the PLV-WF20, WXGA projector delivers an impressive 6000 ANSI lumens with a contrast ratio of 2000:1.

DURABLE IN-ORGANIC OPTICAL SYSTEM (D.I.O.S.)
This Inorganic Optical LCD panel system provides a more durable projector to handle many applications for high-quality, high contrast image presentations.

HIGH RELIABILITY WITH ACTIVE MAINTENANCE FILTER SYSTEM (AMFS)
The newly designed cabinet of the PLV-WF20 has an improved air flow system. This sophisticated filter monitor system is efficient at controlling the temperature. An Active Maintenance Filter System automatically replaces the filter and also warns the user of clogged filters, resulting in better projector performance from improved dust resistance and easy maintenance.

FLEXIBLE SET-UP
Option boards and optional lenses make for a very versatile PLV-WF20 projector. More flexibility and more application options are realized with the following:

  • Mechanical Shutter System clicks into place to block the lamp light the instant you turn off the image.
  • New fan control with angle sensor allows 360° positions.
  • A center lens means versatile lens adjustment. The X-Y Power Lens Shift moves the lens both vertically and horizontally, aiding in greater placement flexibility. They both help in twin-stacking two projectors, enabling easy alignment of images from two projectors with virtually no geometric distortion. For even easier projector lens setup, the Lens Memory function automatically adjust lens shift, zoom and focus, once the projector is turned on.

NETWORK CONTROL / ADMINISTRATION
An optional PJ-Net Organizer network board allows for simple control and management of projectors via a CAT5 network connection. The administrator can use network management software called PJ Master (optional accessory), and be able to centrally control all PJ-Net Organizer-mounted projectors within the network.

24/7* OPERATION
A newly developed liquid crystal panel with an optical compensator that creates linear polarization, together with improved optical block cooling system, gives the PLV-WF20 the capability of being operated on a 24/7* basis.

* In order to maintain a stable lamp condition, at least one hour of rest for the projector is required in each 24-hour period.

Features

  • Impressively Bright, High Contrast Wide Image
  • Resolution at WXGA (1366 x 800)
  • 6000 ANSI Lumens
  • 2000:1 Contrast Ratio
  • Durable In-Organic Optical System (D.I.O.S)
  • High Reliability with Active Maintenance Filter System (AMFS)
  • Easy Maintenance
  • Flexible Set-up
  • Network Control/Administration
  • 24/7 Operation with New Liquid Crystal Panel
  • Wired/RF Remote Control Included
  • 60.8 lbs Net Weight (w/o lens)

Specifications

Resolution Wide XGA (1366 x 800)
Brightness (typical) 6,000 ANSI Lumens (2-lamp mode)
3,000 ANSI Lumens (1-lamp mode)
Uniformity 90% (corner to center)
LCD Panel System 1.2” TFT p-Si x 3
Number of Pixels 3,278,400 (1,092,800 x 3)
Contrast Ratio 2000:1
Projection Lens Lens Sold Separately
Image Size Dependent on Lens
Aspect Ratio 17:10
Throw Distance Dependent on Lens
Zoom/Focus Dependent on Lens
Throw Ratio Dependent on Lens
Zoom Ratio Dependent on Lens
Power Lens Shift Up/Down Ratio 10:-3 – -3:10
Left/Right Ratio 5:3 – 3:5 (Dependent on Lens)
Digital Keystone Correction V +/- 40°, H +/- 20°
Projection Lamp 330W UHP x 2
Scanning Frequency H Sync: 15-120kHz, V Sync: 48-120Hz
Dot Clock 230 MHz
Color System PAL/PAL-M/PAL-N/SECAM/NTSC/NTSC4.43
Computer Compatibility UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA
Voltage 100-120V,200-240V 50/60 Hz
BTU Rating 3242
dB Rating 50dBA
Power Consumption 950W
Dimensions (WxHxD) 20.9”x10.5”x29.8” (not including protrusion)
Net Weight 46.3 lbs
User Maintenance Replace filter cartridge, Replace lamp assembly
Detachable Input Panels
Input 1
Digital Visual Interface (DVI-D) • Analog (D-sub15)
Input 2 RGBHV & Component & Composite (5-BNC)
• S-video (Mini DIN 4-pin)
Input 3 Open for Optional Board
Input 4 Open for Optional Board
Fixed Input/Output Panel Serial in & Serial out (D-Sub 9 x 2) • USB (type B)
• Wired RC jack (Stereo mini)
Included Accessories Wired/RF Remote Control • Two “AA” type batteries
• Owner’s manual (CD-ROM & Quick Reference Guide)
• AC power cord • VGA Cable
• Lens Mount Adapters (POA-LNA02 & POA-LNA01)
• Real Color Manager Pro CD-ROM
Optional Accessories POA-MD23ADI – DVI-D & D-sub15 Board
POA-MD25VD3 – 5BNC Board & S-Video
POA-MD13NET2 – Network Board
POA-MD17SDID – HD-SDI & SD-SDI Input Board
POA-LNA02 – Lens Mount Adapter
(for LNS-W02, W02KS, M01, S01 lenses)
POA-LNA01 – Lens Mount Adapter (for all other lenses)
610 337 0262 – Replacement Lamp
645 095 3286 – Replacement Remote
610 335 9830 – Replacement Cartridge
Warranty Three years parts and labor; 90 days original lamp;
Quick Repair Program under warranty
