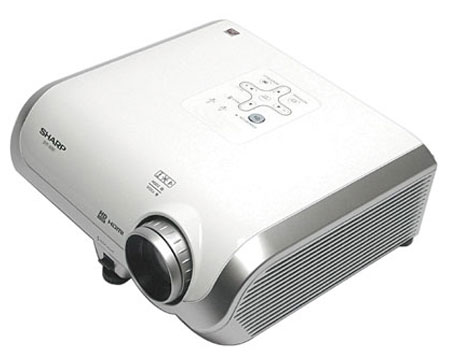

Sharp DT-500 DLP Home Theater Video Projector
Sharp DT-500 MSRP: $2,299
Overview
The Sharp DT-500 projector is a feature packed high definition DLP® projector that is ideal for the dedicated home theater or any viewing room in the home. The DT-500 utilizes DLP® technology from Texas Instruments that includes BrilliantColor™ technology and TrueVision™ Image processing that produces vibrant images and extraordinary video performance.
Features
- 1200 ANSI Lumens Brightness
- High Contrast Ratio 4000:1
- Native 1280 x 768 WXGA Resolution
- 6 Segment 5X Speed Color Wheel
- DLP technology
- HDMI interface
- Color Management System (CMS)
- TrueVision™ Image Processing
- Easy installation and 30 dB whisper quiet operation
Specifications
| HDTV Compatible |
Yes: 1080i, 1035i, 720p, 576p, 576i, 540p, 480p, 480i |
| Aspect Ratio |
4:3/16:9 |
| Resolution |
1280 x 768 (Total 983,040 Pixels) |
| Brightness |
1200 ANSI Lumens (in High Brightness Mode) |
| Contrast Ratio |
4000:1 (in High Contrast Mode) |
| Maximum Screen Size |
300" (Diagonally Measured using 16:9 Aspect Ratio) |
| Projection Distance |
100" (16:9 widescreen) Throw Distance 9'11" – 11'6" |
| Display Method |
DLP® DMD from Texas Instruments |
| Inputs |
2 Component (Y, Pb, Pr)
1 Composite Video (RCA)
1 S-Video (4-Pin DIN)
1 RGB/Component (HD-15pin)
1 HDMI High Definition Multimedia Interface
1 RS-232C Serial Port (9-Pin D-Sub) |
| Anamorphic DVD Capable |
Yes |
| Computer Compatibility |
Compatibility XGA, MAC® 19" |
| Video System |
NTSC/NTSC 3.58, 4.43/PAL/PAL (60Hz)/PAL-M/PAL-N/SECAM |
| Lens Type |
1-1.15x Manual Zoom and Focus |
| Projection Lamp Type/Life |
275W SHP/up to 3,000 Hours |
| I/P Conversion and 3-2 Pull Down |
Yes |
| Gamma Correction |
Yes |
| 2-D Digital Keystone Correction |
Yes |
| Color Temperature Adjustment |
Yes |
| Color Management System (CMS) |
Yes |
| Advanced Picture Mode |
Yes |
| OSD Help Menu |
Yes |
| Quick Start Function |
Yes |
| Picture Freeze |
Yes |
| TrueVision™ Image Processing |
Yes |
| BrilliantColor™ Technology |
Yes |
| Detachable AC Cord |
Yes |
| Optional Ceiling Bracket |
AN-XRCM30 |
| Wireless Glow Remote Control |
Yes |
| Optional Digital Decoder Required |
Yes (for HDTV) |
| Power Source |
100-240V AC, 50/60Hz (Multi-Voltage) |
| Power Consumption |
355W (5W Standby) |
| Dimensions (w x h x d) |
12 13/32" x 4 19/64" x 11 1/32"
(Main Body Only)
12 13/32" x 4 47/64" x 11 37/64"
(Including Terminal Cover) |
| Weight |
8.8 lbs. |
| Limited Warranty |
1-year parts and labor |
|
