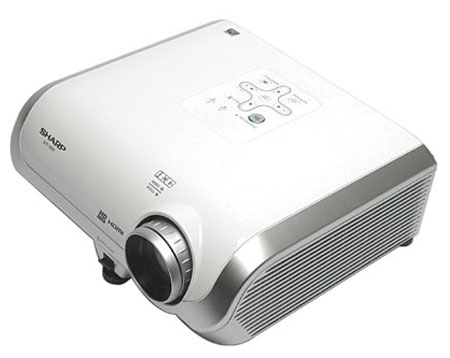

Sharp DT-510 DLP Home Theater Video Projector
Sharp DT-510 MSRP: $1,799
Overview
The Sharp DT-510 projector is a feature packed high definition DLP® projector that is ideal for the dedicated home theater or any viewing room in the home. The DT-510 utilizes DLP® technology from Texas Instruments that includes BrillantColor™ technology and TrueVision™ Image processing that produces vibrant images and extraordinary video performance.
Features
- 1000 ANSI Lumens Brightness
- High Contrast Ratio 4000:1
- Native 1280 x 720 Resolution
- 6 Segment 5X Speed Color Wheel
- DLP technology with BrilliantColor
- HDMI interface
- Color Management System (CMS)
- TrueVision™ Image Processing
- Easy installation and 29 dB whisper quiet operation
- Sealed Optics: prevents dust, dirt and smoke from entering core parts of the optics.
Specifications
| HDTV Compatible |
Yes (1080i/1035i/720p) |
| Aspect Ratio |
4:3/16:9 |
| Resolution |
1280 x 720 (Total: 921,600 pixels) |
| Brightness |
1000 ANSI Lumens (in High Brightness Mode) |
| Contrast Ratio |
4000:1 (in High Brightness Mode) |
| Maximum Screen Size |
300" (Diagonally Measured using 16:9 Aspect Ratio) |
| Projection Distance |
100" (16:9 widescreen) Throw Distance 9'11" – 11'6" |
| Display Method |
0.62" DLP® Chip |
| Inputs |
Component (Y, Pb, Pr) x 2
RGB/Component (HD-15 pin) x 1
Composite Video (RCA) x 1
HDMI™ x 1
S-Video (4-pin DIN) x 1
RS-232C Serial Port (9-pin D-sub) x 1 |
| Anamorphic DVD Capable |
Yes |
| Computer Compatibility |
XGA, SVGA, VGA, MAC® 19"/16"/13" |
| Video System |
NTSC/NTSC 3.58, 4.43/PAL (60Hz)/PAL-M/ PAL-N/SECAM |
| Lens Type |
1-1.15x Manual Zoom and Focus |
| Projection Lamp Type/Life |
220W SHP/up to 3,000 hours |
| I/P Conversion and 3-2 Pull Down |
Yes |
| Gamma Correction |
Yes |
| Geometric Adjustment/Digital Keystone Correction |
Yes |
| Color Temperature Adjustment |
Yes |
| Color Management System (CMS) |
Yes |
| Advanced Picture Mode |
Yes |
| Quick Start Feature |
Yes |
| Picture Freeze |
Yes |
| TrueVision™ Image Processing |
Yes |
| BrilliantColor™ Technology |
Yes |
| Detachable AC Cord |
Yes |
| Optional Ceiling Bracket |
AN-XRCM30 |
| Wireless Glow Remote Control |
Yes |
| Optional Digital Decoder Required |
Yes, for HDTV |
| Power Source |
100-240V AC, 50/60Hz (Multi-Voltage) |
| Power Consumption |
303W (4W Standby) |
| Dimensions (w x h x d) |
12-13/32" x 4-19/64" x 11-1/32"
(Main Body Only)
12-13/32" x 4-47/64" x 11-37/16"
(including Terminal Cover) |
| Weight |
8.8 lbs. |
| Limited Warranty |
1-year parts and labor from date of purchase |
|
