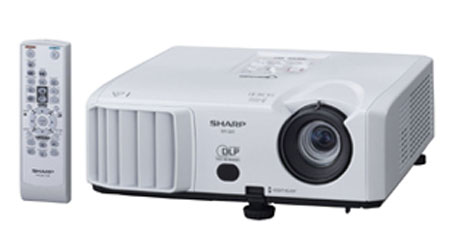

Sharp XR-32S DLP Portable Video Projector


Sharp XR-32S Video Projector

Sharp XR-32S MSRP: $995

Overview

The Notevision® XR-32S with 2500 ANSI Lumens brightness, SVGA native resolution, Closed Caption, and 2000:1 contrast ratio offers high image quality and performance at a remarkably affordable price. DLP® display technology delivers superior color quality, brightness and reliability.

The projector is an ideal choice for extended operation thanks to its ultra-quiet cooling fans, DLP® sealed system and filter-less high efficiency lamp design. A wide complement of inputs along with RGB loop-through and RS-232C make the compact and lightweight (6.4 lb.) projector an excellent choice for "portable" use as well as fixed installations.

Features

  • 2500 ANSI Lumens Brightness
  • Contrast Ratio of 2000:1
  • Native 800 x 600 Resolution
  • DLP technology with TrueVision
  • 3-Speed Color Wheel with Sealed Optics
  • Condenser Lens Optical System
  • Closed Caption
  • Compact and Lightweight (6.4 lb.) Design
  • Wide complement of inputs and outputs
  • Quick Start (3 seconds)
  • Increased lamp life (up to 4000 hours)

Specifications

Brightness 2500 ANSI Lumens
Display Resolution (Native) SVGA (800 x 600)
Resolution Capability (Maximum) UXGA (1600 x 1200) with ImageACE™ Resizing
Compatibility Video Compatibility (DTV/HDTV): 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i, 1080p with 4:3 and 16:9 aspect ratios
Frequency Range 15-110 kHz Horizontal / 45-85 Hz Vertical
Weight / Dimensions (w x h x d) 6.4 lbs. / 10.6" x 3.5" x 10.4" (main body)
Unique Feature(s) Closed Caption (CC1, CC2); Filter-Less Design; Sealed DLP® system; Direct Power-Off and Auto-Restart functions; Front Exhaust (to direct cooling air towards "front" of room and away from audience); High-Speed 3x Color Wheel; Interactive Guide; Theft Deterrent Functions; Presentation Assist Remote Control.
Panel Type 0.55" DLP® - 12º
Dot Clock 12-170 MHz
PC Compatibility Yes
Mac® Compatibility Yes
Video System NTSC 3.58, 4.43 / PAL, 60, M, N / SECAM
DTV/HDTV Compatibility 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i, 1080p
Lens Type 1:1.15x Short Throw Manual Zoom and Focus, F2.5-2.6, f=20.4-23.5mm, Throw Ratio: 1.8-2.1
PC Control RS-232C
Remote Control IR Wireless Remote Control with forward/back PC presentation and mouse control, on-screen G.U.I. (graphic user interface) pointer, spotlight function, image “freeze” and break timer
Wired Remote No
Audio System 2 Watt monaural
Lamp 200 Watt (end-user replaceable) - model number AN-F212LP or AN-F212LP/1
Fan Noise 32dB in standard mode; 29dB in low-power ("eco + quiet") mode
Power Source 100-240V AC, 50/60Hz (Multi-Voltage)
Power Consumption 267W in "bright" lamp setting / 5W standby
Presentation Tools Incorporated into the wireless remote: forward/back presentation and mouse control, spotlight function, on-screen G.U.I. (graphic user interface) pointer, image "freeze" and break timer
Limited Warranty 1 year parts and labor excluding projector lamp. 90 days on user-replaceable projector lamp.
Computer Inputs Computer/RGB (or Component) – mini D-sub 15 Pin
Video Inputs Component Video (or RGB/Computer) – mini D-sub 15 Pin; Independent S-Video - 4-pin mini DIN and Composite Video - RCA pin-type
Audio Inputs PC/Component Stereo Audio Input - 3.5mm stereo mini Connector; "Video" Stereo Audio Input - 1-pair RCA pin-type
Outputs RGB Monitor Loop-Through - 15 Pin HD
Additional Connectors RS-232C Input - 9 pin mini DIN
Included Accessories Wireless Remote Control; two "AA" batteries; 6' AC Power Cord; 10' RGB signal cable; attached lens cap; operation manual; CD-ROM manual
Optional Accessories AN-XRCM30 ceiling mounting bracket; AN-EP10B extension tube for ceiling mount; AN-JT200 angle mount joint for ceiling mount; AN-CMCSS46 46" security cable system for use with ceiling mount and extension tube; AN-CMCSS16 16" security cable system for use with ceiling mount; AN-C3CP2 component video (3-RCA) to 15-pin D-Sub cable (10'); AN-A1RS RS-232C adaptor; AN-MR2 remote IR receiver (for forward/back presentation control in ceiling mount applications); AN-C500SB lightweight storage bag; AN-C600WCC hard-shell wheeled storage bag; AN-C600SC "ATA" type storage case. Replacement Lamp Module: AN-F212LP or AN-F212LP/1
Min/Max Screen Size 40" - 300" (diagonal, 4:3)
Min/Max Projection Distance 4' 11" (for 40" diagonal, 4:3) up to 36' 10" (for 300" diagonal, 4:3)
Other Closed caption; front exhaust system with filter-less design; direct power off and auto re-start; DTV/HDTV compatibility (both 4:3 and 16:9) for use with current and future video technologies Please see spec sheet for additional feature and specification information.
