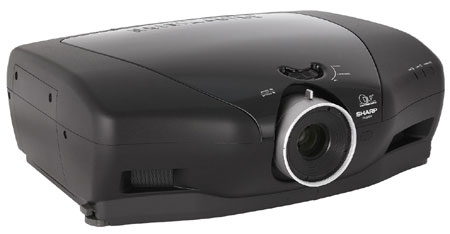

Sharp XV-Z20000 DLP Home Theater Video Projector
Sharp XV-Z20000 MSRP: $6,999
Overview
This SharpVision 1080p high definition DLP® front projector represents the pinnacle in home theater. Utilizing DLP 0.95" DarkChip3™ 1920 x 1080 technology from Texas Instruments and Sharp’s advanced proprietary Computer Video & Integrated Composer (CV-IC System III) technology, the Z20000 boasts a 12000:1 contrast ratio and a high brightness 1000 ANSI lumens rating, delivering one of the best pictures available in consumer home theater projectors today.
Features
- 1000 ANSI Lumens Brightness
- High Contrast Ratio 12000:1
- Native 1920 x 1080 Resolution (1080p High Definition Capability)
- DLP technology
- 7 Segment 5X Speed ND (Neutral Density) Color Wheel
- CV-IC System III
- Powered Iris Switchover Function (High Contrast Mode/ Middle Mode/High Brightness Mode)
- Manual Optical Lens Shift
- HDMI™ High Definition Multimedia Interface
- DVI-I with High-bandwidth Digital Content Protection (HDCP) Terminal
Specifications
| HDTV Compatible |
1080p, 1080i, 1035i, 720p, 576p, 576i, 540p, 480p, 480i |
| Aspect Ratio |
4:3/16:9 |
| Resolution |
1920 x 1080 |
| Brightness |
1000 ANSI Lumens (in High Brightness Mode) |
| Contrast Ratio |
12000:1 (in High Contrast Mode) |
| Maximum Screen Size |
300" (Diagonally Measured using 16:9 Aspect Ratio) |
| Projection Distance |
100" Screen Throw Distance 13' 5" - 18' 2" (wide) |
| Display Method |
DLP® 0.95" chip from Texas Instruments |
| Inputs |
2 HDMI™
1 DVI-I/HDCP (Component and Digital/Analog RGB)
2 Component/RGB (5 RCA)
1 Composite Video (RCA)
1 S-Video (4-Pin DIN)
1 Wired Remote Control (3.5mm Mini Jack)
1 RS-232C Serial Port (9-Pin D-Sub) |
| 3D Y/C Digital Comb Filter |
Yes |
| Manual Optical Lens Shift |
Yes, 1 Full Screen Height |
| Film Mode |
Yes1, 24 Hz Progressive Format |
| Computer Compatibility |
WSXGA, WXGA, SXGA, SXGA, XGA, Mac® 21"/19" SVGA, VGA, VESA, Mac® 16"/13 |
| Video System |
NTSC/NTSC4.43/PAL/PAL (60Hz)/PAL-M/PAL-N/SECAM |
| Lens Type |
1.35:1 Manual Zoom and Focus |
| Projection Lamp Type/Life |
220W SHP/up to 3000 Hours (in eco mode) |
| Fan Noise |
31 dB (in eco mode) |
| Gamma Correction |
Yes |
| Color Temperature Adjustment |
Yes |
| Detachable AC Cord |
Yes |
| Optional Ceiling Bracket |
AN-CM250 |
| Wireless Light-Up Remote Control |
Yes |
| Optional Digital Decoder Required |
Yes (for HDTV) |
| Power Source |
100-240V AC, 50/60Hz (Multi-Voltage) |
| Power Consumption |
310W (0.18W in Standby) |
| Dimensions (w x h x d) |
18-11/16" x 7" x 16"
(Main Body Only)
18-11/16" x 7" x 19-1/2"
(including Terminal Cover) |
| Weight |
20.7 lbs. |
| Limited Warranty |
1-year parts and labor from date of purchase |
| UPC |
074000364967 |
|
