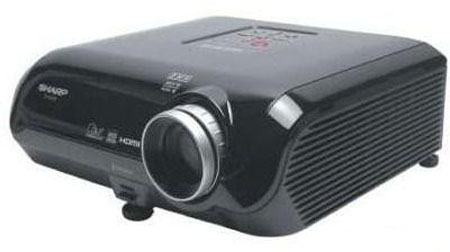

Sharp XV-Z3100 DLP Home Theater Video Projector
Sharp XV-Z3100 MSRP: $1,999
Overview
The SharpVision® XV-Z3100 is a feature packed high definition DLP® projector that is ideal for the dedicated home theater or any viewing room in the home. The XV-Z3100 utilizes DLP® technology from Texas Instruments that includes BrillantColor™ technology and TrueVision™ Image processing that produces vibrant images and extraordinary video performance.
The XV-Z3100 also features a resolution of 1280 x 720, a 6 segment 5x Speed color wheel, a brightness rating of 1000 ANSI lumens, and outstanding 6500:1 contrast ratio (thanks to a Twin Iris System), and three high definition capable inputs that include and HDMI™ interface, delivering one of the best pictures available in consumer home theater today.
Features
- 1000 ANSI Lumens Brightness
- High Contrast Ratio 6500:1
- Native 1280 x 720 Resolution (720p High Definition Capability)
- DLP technology with BrillantColor
- 6 Segment 5X Speed ND (Neutral Density) Color Wheel
- HDMI™ High Definition Multimedia Interface
- Sealed optics: prevents dust, dirt and smoke from entering core parts of the optics
- Easy installation and 29dB whisper quiet operation
Specifications
| HDTV Compatible |
Yes (1080i/1035i/720p) |
| Aspect Ratio |
4:3/16:9 |
| Resolution |
1280 x 720 (Total: 921,600 pixels) |
| Brightness |
1000 ANSI Lumens (in High Brightness Mode) |
| Contrast Ratio |
6500:1 (in High Brightness Mode) |
| Maximum Screen Size |
300" (Diagonally measured using 16:9 aspect ratio) |
| Projection Distance |
100" (16:9 widescreen) Throw Distance 9’ 11" – 11' 6" |
| Display Method |
0.62" DLP® Chip |
| Inputs |
Component (Y, Pb, Pr) x 2
RGB/Component (HD-15 pin) x 1
Composite Video (RCA) x 1
HDMI™ x 1
S-Video (4-pin DIN) x 1
RS-232C Serial Port (9-pin D-sub) x 1 |
| Outputs |
1 DC 12V Trigger out |
| Anamorphic DVD Capable |
Yes |
| Computer Compatibility |
XGA, SVGA, VGA, MAC® 19"/16"/13" |
| Video System |
NTSC/NTSC 3.58, 4.43/PAL (60Hz)/PAL-M/ PAL-N/SECAM |
| Lens Type |
1-1.15x Manual Zoom and Focus |
| Projection Lamp Type/Life |
220W SHP/up to 3000 Hours |
| I/P Conversion and 3-2 Pull Down |
Yes |
| Gamma Correction |
Yes |
| Geometric Adjustment/Digital Keystone Correction |
Yes |
| Color Temperature Adjustment |
Yes |
| Color Management System (CMS) |
Yes |
| Advanced Picture Mode |
Yes |
| Quick Start Feature |
Yes |
| Picture Freeze |
Yes |
| TrueVision™ Image Processing |
Yes |
| BrillantColor™ Technology |
Yes |
| Detachable AC Cord |
Yes |
| Optional Ceiling Bracket |
AN-XRCM30 |
| Wireless Glow Remote Control |
Yes |
| Optional Digital Decoder Required |
Yes, for HDTV |
| Built-in Audio |
None |
| Power Source |
100-240V AC, 50/60Hz (Multi-Voltage) |
| Power Consumption |
303W (4W Standby) |
| Dimensions (w x h x d) |
12-13/32" x 4-19/64" x 11-1/32"
(Main Body Only)
12-13/32" x 4-47/64" x 11-37/16"
(including Terminal Cover) |
| Weight |
8.8 lbs. |
| Limited Warranty |
1-year parts and labor from date of purchase |
| UPC |
074000365162 |
|
