Sony VPL-CS21 3LCD Ultra Portable Video Projector

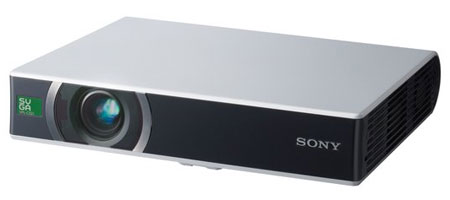

Sony VPL-CS21 Video Projector

Sony VPL-CS21 MSRP: $1370

Overview

Ultra-Portable Business Projector, Ideal for Field Sales Staff and Others Always on the Move. The Sony VPL-CS21 projector features high portability, Automatic Setup, High Brightness and Anti-theft functions.

Features

  • 2100 ANSI lumens (High lamp mode) 1600 ANSI lumens (Std lamp mode)
  • Native SVGA Resolution (800 x 600)
  • Accepts Computer Signals up to SXGA
  • 40 to 300-inch sceen size (viewable area measured diagonally) *Auto Focus adjusts to 150-inches
  • Short Focal-Length Lens with Power Focus and Power Zoom
  • Weighs approx. 4.2 lbs (1.9 kg)
  • UHP Lamp with Selectable Wattage: 165W (High mode) / 125W (Std mode) UHP Lamp
  • Intelligent Auto Setup: Powered lens Protector, Powered Tilt Adjuster, Auto Keystone Correction, Auto Focus, Auto Input Search & Smart APA
  • OFF&GO
  • Freeze Function
  • 4x Digital Zoom
  • 2-pole AC Power Cord - Means no bulky transformer to carry.
  • Anti-Theft Features: Password-Authentication System, Control Panel Key Lock, Security Lock
  • 15 Language On-Screen Display
  • 6 Selectable Picture Modes
  • Image Flip
  • Picture Muting

Specifications

Optical

Projection System 3 LCD panels
1 lens projection system
Image Device 0.63 inch SVGA LCD Panel
Screen Coverage 40 to 300 inches (viewable area measured diagonally)
40 to 150 inches (auto focus operation range)
Light Output 2100 lumens (lamp mode high), 1600 lumens (lamp mode low)
Projection Lens 1.2 times
F 1.6 to 1.94
f18.8 to 22.6 mm
Brightness 2100 Lumens
Brightness (lamp mode low) 1600 Lumens
Lamp 165/125 W UHP
Contrast Ratio 300:1
Lamp Life 2000H (lamp mode high) 3000 (lamp mode low)

Input/Output

Composite Video A/V Multi
S-Video A/V Multi
RGB/Component HD D-sub 15 pin female x 1

General

Weight 1.9 kg / 4.2lbs
Power Requirements AC 100 to 240V
2.2 – 1.0A
50/60Hz
Dimensions (W x H x D) 10 3/4 x 2 1/8 x 8 3/8 Inches
(273 x 52 x 210 mm)
Power Consumption 220W Max
0.8W Standby
Operating Temperature 0 to 35 C degrees (32 to 95 F degrees)
Storage Temperature -20 to 60 C degrees (-4 to 140 F degrees)
Operating Humidity 35 to 85% (no condensation)
Storage Humidity 10% to 90%
Fan Noise 41dB (lamp mode: High) 32dB (lamp mode: Low)
Veritcal Keystone Correction Range Max. +/- 15 degrees vertically
Speaker Mono 1W (Max.) x 1
Heat Dissipation 750.7 BTU

Other

Safety Regulations UL1950 listed, cUL (CSA 60950)
FCC Class B
IC Class B
NEMKO (EN60950)
CE (LVD / EMC)
C-Tick Denan
VCCI Class B

Electrical

Color System NTSC3.58
PAL
SECAM
NTSC4.43
PAL-M
PAL-N
PAL60
Acceptable Computer Signals fH: 19 – 92KHz
fV: 48 – 92Hz (Up to SXGA+ (60Hz)
Acceptable Video Signals DTV(480/60i / 575/50i / 480/60P / 575/50P / 540/60P / 720/60P / 720/50P / 1080/60i / 1080/50i)
Composite Video, Y/C Video
15kHz RGB / Component 50/60Hz
Progressive Component 50/60Hz
Video Resolution 600TV lines
Native Resolution SVGA: 800 x 600 Pixels
RGB Resolution 800 x 600 pixels
