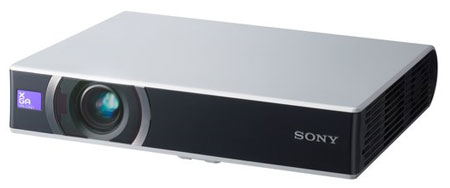

Sony VPL-CX21 3LCD Ultra Portable Video Projector
Sony VPL-CX21 MSRP: $1510
Overview
Ultra-Portable Business Projector, Ideal for Field Sales Staff and Others Always on the Move. The Sony VPL-CX21 projector features high portability, Automatic Setup, High Brightness and Anti-theft functions.
Features
- 2100 ANSI lumens (High Lamp Mode) 1600 ANSI lumens (Std lamp mode)
- Native XGA Resolution (1024 x 768)
- Accepts Computer Signals up to SXGA
- 40 to 300-inch screen size (viewable area measured diagonally) *Auto Focus adjusts up to 150-inches
- Short Focal-Length Lens with Power Focus and Power Zoom
- Weighs approx. 4.2lbs (1.9kg)
- UHP Lamp with Selectable Wattage: 165W (High Mode) 125W (Std Mode)
- Intelligent Auto Setup: Powered lens Protector, Powered Tilt Adjuster, Auto Keystone Correction, Auto Focus, Auto Input Search & Smart APA
- OFF&GO
- Freeze Function
- 4x Digital Zoom
- 2-pole AC Power Cord - means no bulky transformer to carry.
- Anti-Theft Features: Password-Authentication System, Control Panel Key Lock, Security Lock
- 15 Language On-Screen Display
- Image Flip
- 6 Selectable Picture Modes
- Picture Muting
Specifications
Optical
| Projection System |
3 LCD panels
1 lens projection system |
| Image Device |
0.63 inch XGA LCD Panel |
| Screen Coverage |
40 to 300 inches (viewable area measured diagonally)
40 to 150 inches (auto focus operation range) |
| Light Output |
2100 lumens (lamp mode high), 1600 lumens (lamp mode low) |
| Projection Lens |
1.2 times
F 1.6 to 1.94
f18.8 to 22.6 mm |
| Brightness |
2100 Lumens |
| Brightness (lamp mode low) |
1600 Lumens |
| Lamp |
165/125 W UHP |
| Contrast Ratio |
300:1 |
| Lamp Life |
2000H (lamp mode high) 3000 (lamp mode low) |
Input/Output
| Composite Video |
A/V Multi |
| S-Video |
A/V Multi |
| RGB/Component |
HD D-sub 15 pin female x 1 |
General
| Weight |
1.9 kg / 4.2lbs |
| Power Requirements |
AC 100 to 240V
2.2 – 1.0A
50/60Hz |
| Dimensions (W x H x D) |
10 3/4 x 2 1/8 x 8 3/8 Inches
(273 x 52 x 210 mm) |
| Power Consumption |
220W Max
0.8W Standby |
| Operating Temperature |
0 to 35 C degrees (32 to 95 F degrees) |
| Storage Temperature |
-20 to 60 C degrees (-4 to 140 F degrees) |
| Operating Humidity |
35 to 85% (no condensation) |
| Storage Humidity |
10% to 90% |
| Fan Noise |
41dB (lamp mode: High) 32dB (lamp mode: Low) |
| Veritcal Keystone Correction Range |
Max. +/- 15 degrees vertically |
| Speaker |
Mono 1W (Max.) x 1 |
| Heat Dissipation |
750.7 BTU |
Other
| Safety Regulations |
UL1950 listed, cUL (CSA 60950)
FCC Class B
IC Class B
NEMKO (EN60950)
CE (LVD / EMC)
C-Tick Denan
VCCI Class B |
Electrical
| Color System |
NTSC3.58
PAL
SECAM
NTSC4.43
PAL-M
PAL-N
PAL60 |
| Acceptable Computer Signals |
fH: 19 – 92KHz
fV: 48 – 92Hz (Up to SXGA+ (60Hz) |
| Acceptable Video Signals |
DTV(480/60i / 575/50i / 480/60P / 575/50P / 540/60P / 720/60P / 720/50P / 1080/60i / 1080/50i)
Composite Video, Y/C Video
15kHz RGB / Component 50/60Hz
Progressive Component 50/60Hz |
| Video Resolution |
750TV lines |
| Native Resolution |
XGA: 1024 x 768 Pixels |
| RGB Resolution |
1024 x 768 pixels |
|
