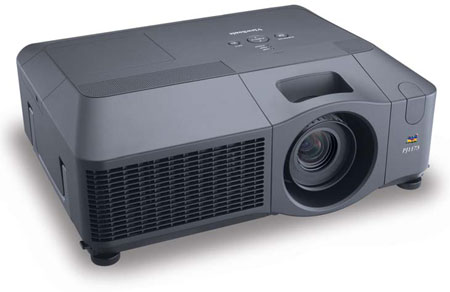

ViewSonic PJ1173 3LCD Multimedia Video Projector
ViewSonic PJ1173 MSRP: $4,999
Overview
ViewSonic's PJ1173 projector delivers maximum impact for large-venue presentations. With 5,000 LUMENS and 1000:1 contrast ratio (typ), this PREMIUM PROJECTOR is ideally suited for conference rooms, lecture halls, religious sanctuaries and boardrooms. The PJ1173 is full-featured with native XGA 1024x768 resolution, advanced image processing, manual lens shift, horizontal and vertical (auto) keystone correction, and HDMI input for perfect high-def images.
The image reversing function offers versatile installation options. Network connectivity allows you to REMOTELY CONTROL AND MANAGE YOUR PROJECTOR and the 4x4-watt SRS® WOW STEREO SPEAKERS give your presentations powerful sound. The security bar and PIN lock guard against theft and unauthorized use. The PJ1173 projector is the full-featured choice for dynamic presentations and smooth video entertainment in large venues.
Features
- Very bright 5000 ANSI Lumens
- Native 1024 x 768 XGA Resolution
- 4:3 Native Aspect Ratio
- 1000:1 Contrast Ratio
- Weighs 15.6 lbs
- Enhanced security feature: PIN lock, Kensington® security lock and a security bar
- Network control through RJ-45
- Superior 16-watt stereo sound: Four 4-watt speakers with SRS® WOW technology for
panoramic 3D sound.
- Easy maintenance: Easy access to the lamp and filter covers even
when the projector is mounted.
Specifications
| TECHNOLOGY |
Type |
0.8" Polu-Si TFT with micro lens |
| Pixel Format |
1024x768 XGA |
| Lens |
Manual zoom, manual focus, manual lens shift |
| Zoom Factor |
1.2 |
| Keystone |
Auto-vertical ± 40º, horizontal ± 20º |
| DISPLAY |
Size |
30" to 350" (diagonally) |
| Throw Distance |
35" - 425" |
| Throw Ratio |
1.5~1.8:1 |
| Brightness |
5,000 ANSI lumens |
| Contrast Ratio |
1000:1 (typ) |
| Aspect Ratio |
4:3 (native), 16:9 |
| AUDIO |
Speakers |
4x4-watt with SRS® WOW technology |
| INPUT SIGNAL |
Computer and Video |
RGB analog, NTSC M, NTSC 4.45, PAL, SECAM, HDTV (480i, 480p, 575i, 720p, 1080i) |
| Frequency |
Fh: 31-92kHz, Fv: 56-120Hz |
| COMPATIBILITY |
PC |
Analog: from VGA up to UXGA (compressed) |
| Mac®+ |
Analog: up to SXGA (may require Mac Adapter) |
| CONNECTOR |
RGB Input |
Analog RGB: DB-15 (x2), Digital RGB: M1-D |
| HDMI (input) |
HDMI 1.3 with audio (x1) |
| RS-232 |
9-pin D-sub (x1) |
| RGB Output |
DV-15 (x1) |
| RGB |
BNC-5 (x1 set) |
| Composite Video |
RCA-3 jack (x1 set) |
| Component Video |
RCA Jack (x1 set) |
| S-Video |
Mini Din 4-pin (x1) |
| Audio Input |
3.5mm stereo mini jack (x2) for RGB, RCA l/R jack (1 set) |
| Audio Output |
3.5mm stereo mini jack (x1) |
| Remote |
Wireless Remote Control IR (x3) |
| Network |
RJ-45 |
| Mouse Control |
M1-D |
| POWER |
Voltage |
100-240 VAC/50-60 (universal) |
| Consumption |
460W (typ) |
| CONTROLS |
Basic |
Standby, menu, input, reset, H/V keystone, search, picture mode |
| OPERATING CONDITIONS |
Temperature |
32° F to 95° F (0° C to 35° C) |
| Humidity |
10% to 85% (non-condensing) |
| Altitude |
0-6,000 ft+ |
| NOISE LEVEL |
Normal |
39 dB (typ) |
| Eco-mode |
33 dB (typ) |
DIMENSIONS
(WXHXD) |
Physical (mm) |
418mm x 139mm x 319mm |
| Physical (in.) |
16.5" x 5.5" x 12.6" |
| WEIGHT |
Net |
15.6 lb. (7.1 kg) |
| Gross |
25.6 lb. (11.6 kg) |
| REGULATIONS |
UL 60950, C-UL, FCC-B, TUV/GS, CB, CE, C-TICK, GHOST, NOM, CCC, PSB |
| OTHER |
Lens shift, progressive scan, PIN lock, network control, anti-theft security bar, daylight mode, 16-watt speakers, optional lenses, active iris, eShot, adjustable fan speed, mouse with laser pointer |
| PACKAGE CONTENTS |
Projector, power cords, VGA cable, RCA video cable, wireless remote control, lens cap, ViewSonic Wizard CD, Quick Start Guide |
| WARRANTY |
Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service. |
|
