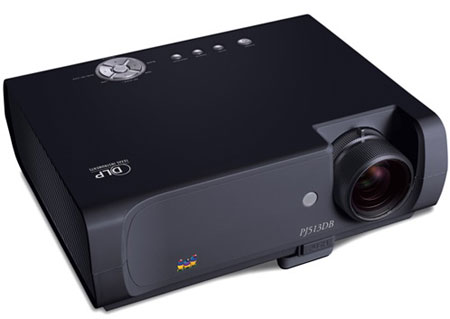

ViewSonic PJ513DB DLP Portable Video Projector
ViewSonic PJ513DB MSRP: $649
Overview
ViewSonic's PJ513DB DLP® projector delivers amazingly clear images with the digital clarity of DLP technology with BrilliantColorTM. The PJ513DB is the right choice for small offices, classrooms and even home use. It weighs just 5.7 pounds and produces 2,200 lumens. The image reversing function allows for installation flexibility, while the multiple inputs and support for 720p and 1080i signals provide for versatile, dynamic presentations when you connect your PC, DVD player and more.
The native 800x600 SVGA resolution, digital keystone correction and zoom lens ensure that you'll get the best possible image in virtually any setting. The PJ513DB DLP projector delivers excellent performance and value for business and education markets.
Features
- 2200 ANSI Lumens
- Native 800 x 600 SVGA Resolution
- 4:3 Native Aspect Ratio
- 2000:1 Contrast Ratio
- Weighs 5.7 lbs
- HDTV Compatible
- Image reversing function allows for installation flexibility
- Customize startup screen
- Multiple color correction modes
Specifications
| TECHNOLOGY |
Type |
.055 DDR DMD, DLP |
| Pixel Format |
800x600 (SVGA |
| Lens |
Manual zoom, manual focus |
| Zoom Factor |
1.1 |
| Keystone |
Vertical ±25 degrees |
| DISPLAY |
Size |
37" to 162" (measured diagonally) |
| Throw Distance |
59" - 236.2" |
| Throw Ratio |
1.8~1.98:1 |
| Lamp |
180W, 2,000 hrs. normal, up to 3,000 hrs. eco-mode |
| Brightness (max) |
2,200 ANSI lumens |
| Contrast Ratio |
2000:1 |
| Aspect Ratio |
4:3 (native), 16:9 |
| INPUT SIGNAL |
Computer and Video |
RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480p, 720p, 1080i) |
| Frequency |
Fh: 30-70kHz; Fv: 50-87Hz |
| COMPATIBILITY |
PC |
Analog: from VGA up to SXGA (scaled) |
| Mac®+ |
Analog: up to SXGA |
| CONNECTOR |
Composite Video Input |
RCA jack |
| S-Video Input |
Mini-Din 4-pin |
| Component Video Input |
VGA DB-15 to HDTV/component cable |
| RS-232 |
Mini Din-8 |
| RGB (input/output) |
15-pin HD, D-sub |
| Audio Input |
Mini mono jack |
| POWER |
Voltage |
100-240 VAC, 50-60Hz (universal) |
| Consumption |
260W (typ) |
| CONTROLS |
Basic |
Standby/on, input, menu |
| OnView® |
Display mode (aspect ratio, keystone position, phase, H. size, digital zoom), picture (preset mode, reference mode, brightness, contrast, color, tint, sharpness, BrilliantColor, color temperature, save settings), system setting (projector position, auto power off, blank timer, panel key lock, timer controller, splash screen, quick cooling, high altitude mode, dynamic contrast ratio, audio settings, menu settings, lamp settings, reset all), information (source, preset mode, resolution, color system, equivalent lamp hour) |
| OPERATING CONDITIONS |
Temperature |
32° - 104° F (0°-40° C) |
| Humidity |
10% to 90% (non-condensing) |
| Altitude |
0-10,000 ft+ |
| NOISE LEVEL |
Normal |
32dB (typ) |
| Eco-mode |
28dB (typ) |
DIMENSIONS
(WXHXD) |
Physical |
10.3" x 4.2" x 8.6"(263mm x 218mm x 108mm) |
| WEIGHT |
Net |
5.7 lb. (2.6 kg) |
| Gross |
8.3 lb. (3.8 kg) |
| REGULATIONS |
FCC-B, CE, CB, CCC, NOM, C-TICK, ICES 003, TUV/GS, GOST-R, HYGIENIC, UKrSEPRO, RoHS |
| PACKAGE CONTENTS |
Projector, power cable, VGA cable, remote control with batteries, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide) |
| WARRANTY |
Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service. |
| RECYCLING/DISPOSAL |
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. |
|
