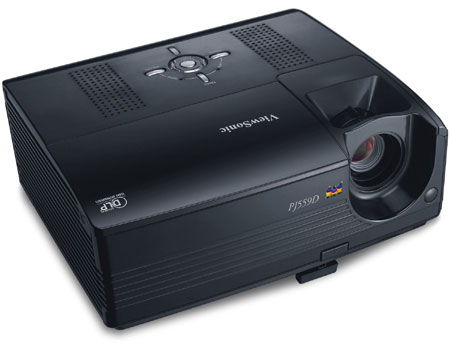

ViewSonic PJ559D DLP Portable Video Projector
ViewSonic PJ559D MSRP: $1,279
Overview
The ViewSonic® PJ559D DLP® projector features 2,700 lumens, native 1024x768 resolution, ultra-high 2000:1 contrast ratio (typ) and Brilliant ColorTM technology for precise images in any lighting condition. This full-featured projector includes MULTIPLE INPUTS for connecting several display sources simultaneously, dual 5-watt speakers for complete multimedia presentations, VERTICAL KEYSTONE CORRECTION for easy image adjustment and DIRECT OFF FEATURE.
Choose from whiteboard, blackboard or greenboard mode for the best picture on your projection surface. Eco-mode extends lamp life and reduces fan noise as low as 34dB. Protect your projector from theft and unauthorized use with the Kensington® security port and PIN lock password. Choose the PJ559D projector for education and business use.
Features
- 2700 ANSI Lumens
- Native 1024 x 768 XGA Resolution
- 4:3 Native Aspect Ratio
- 2000:1 Contrast Ratio
- Weighs 6 lbs
- Supports HD signals including 720p and 1080i
- Customizable start-up screen
- Lamp life up to 4,000 hours
- OnView® controls for superior screen adjustability
Specifications
| TECHNOLOGY |
Type |
0.55" DDR DMD, DLP |
| True Resolution |
1024x768 XGA |
| Lens |
Manual zoom/focus |
| Zoom Factor |
1.1 |
| Keystone |
Vertical ± 40º |
| DISPLAY |
Size |
27.2" to 250" (diagonally) |
| Throw Distance |
47.2" - 393.2" |
| Throw Ratio |
1.97~2.6:1 |
| Lamp Type |
200W, 3,500 hours normal, up to 4,000 eco mode** |
| Brightness |
2,700 ANSI lumens |
| Contrast Ratio |
2000:1 |
| Aspect Ratio |
4:3 (native), 16:9 |
| AUDIO |
Speakers |
2x5-watt |
| INPUT SIGNAL |
Computer and Video |
RGB analog, NTSC, NTSC 4.43, PAL, SECAM, HDTV (480p, 720p, 1080i) |
| Frequency |
Fh: 31-79kHz; Fv: 56-85Hz |
| COMPATIBILITY |
PC |
Analog: from VGA up to SXGA (scaled) |
| Mac®+ |
Analog: up to SXGA |
| CONNECTOR |
Composite Video |
RCA jack |
| S-Video |
Mini-Din 4-pin |
| Component Video Input |
VGA DB-15 to HDTV/component cable* |
| RS-232 |
6-pin D-sub |
| RGB (input/output) |
15-pin HD, D-sub (x2) |
| Audio Input |
Stereo mini jack |
| Audio Output |
Stereo mini jack |
| USB |
|
Type B for mouse control only |
| POWER |
Voltage |
100-240 VAC, 50-60Hz (universal) |
| Consumption |
200W (typ) |
| CONTROLS |
Basic |
Standby/On, input, menu |
| OnView® |
Display mode, brightness, contrast, keystone, aspect ratio, blank screen, color temperature, user color, video (sharpness, saturation, tint), display (phase, H. position, V. position), advance (auto source select, eco mode, lamp hours, lamp reset, auto shutdown, OSD timeout, menu position, factory reset) audio (audio mute) |
| OPERATING CONDITIONS |
Temperature |
32° to 104° F (0° to 40° C) |
| Humidity |
10% to 90% (non-condensing) |
| Altitude |
0-10,000 ft+ |
| NOISE LEVEL |
Normal |
35 dB (typ) |
| Eco-mode |
33 dB (typ) |
DIMENSIONS
(WXHXD) |
Physical (mm) |
277mm x 109mm x 233mm |
| Physical (in.) |
8.9" x 4.3" x 8.8" |
| WEIGHT |
Net |
6.0 lb. (2.7 kg) |
| Gross |
13.0 lb. (5.9 kg) |
| REGULATIONS |
UL/cUL, FCC-B, CE, CB, CCC, NOM, ICES-003, IRAM, GS, GOST-R, Hygienic, UKrSEPRO, RoHS |
| PACKAGE CONTENTS |
Projector, power cable, VGA cable, S-video cable, remote control with built-in laser, soft case, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide) |
| WARRANTY |
Three-year limited warranty on parts and labor. One-year warranty on lamp. First-year free Express Exchange service. |
| RECYCLING/DISPOSAL |
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. |
|
