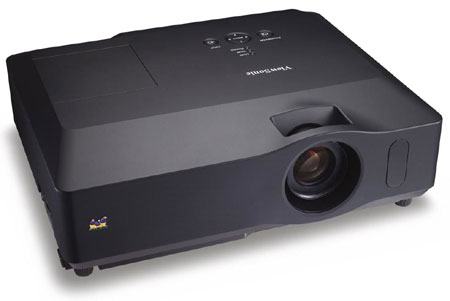

ViewSonic PJ759 3LCD Portable Video Projector
ViewSonic PJ759 MSRP: $1,299
Overview
The ViewSonic® PJ759 projector is a performance leader with a rich feature set at an affordable price. The PJ759 delivers 2,600 lumens and 1024x768 XGA resolution, scalable up ot 1600x1200 UXGA, for crisp, detailed images in any lighting situation.
With seven picture modes, including daylight, blackboard, whiteboard and greenboard, you can adjust the light output for any given environment. This multimedia projector is easy to set up and its direct off feature allows you to unplug it and go. The built-in 7-watt speaker and wide array of PC and video connectivity options let you deliver dynamic, versatile presentations. The easy lamp and filter replacement make maintenance a breeze.
The PJ759 projector is ideal for table-top or mounted use in the office, classroom or on the road.
Features
- 2600 ANSI Lumens
- Native 1024 x 768 XGA Resolution
- 4:3 Native Aspect Ratio
- 500:1 Contrast Ratio
- Closed captioning
- Built-in 7-watt speaker
- 2 RGB Inputs - connect a computer or add a video source for dynamic meetings and presentations
- Weighs 7.8 lbs
- Customizable start-up screen
- Easy maintenance - sliding filter cover and simple lamp replacement
Specifications
| TECHNOLOGY |
Type |
0.63 Poly-Si TFT with micro-lens |
| Pixel Format |
1024x768 XGA |
| Lens |
Manual zoom/focus |
| Zoom Factor |
1.2 |
| Keystone |
Vertical ± 30º |
| DISPLAY |
Size |
30" to 300" (diagonally) |
| Throw Distance |
35" - 354" |
| Throw Ratio |
1.5~1.7:1 |
| Lamp Type |
220W, 2,000 hrs. normal, up to 3,000 hrs. whisper-mode* |
| Brightness (max) |
2,600 ANSI lumens |
| Contrast Ratio |
500:1 |
| Aspect Ratio |
4:3 (native), 16:9 |
| INPUT SIGNAL |
Video |
RGB analog, NTSC M, NTSC 4.43, PAL, SECAM, HDTV (480i, 480p, 576i, 720p, 1080i) |
| Frequency |
Fh: 31-106kHz; Fv: 56-120Hz |
| AUDIO |
Speakers |
1x7-watt |
| COMPATIBILITY |
PC |
Analog: from VGA up to UXGA |
| Mac®+ |
Analog: up to UXGA |
| CONNECTOR |
RGB Input |
15-pin HD, D-sub (x2) |
| Composite Video Input |
RCA jack (x1) |
| S-Video Input |
Mini-DIN 4-pin |
| Component Video Input |
VGA DB-15 to component adapter** |
| Audio Input |
Stereo mini-jack |
| Audio Output |
Stereo mini-jack |
| USB |
|
for mouse control only |
| POWER |
Voltage |
100-240 VAC, 50-60Hz (universal) |
| Consumption |
320W (typ) |
| CONTROLS |
Basic |
Standby, input, reset, V. keystone |
| OnView® |
Language, brightness, contrast, gamma, color temperature, color, tint, sharpness, progressive, My Memory, aspect, overscan, V. position, H. position, H. phase, H. size, auto adjust, video NR, color space, component, video format, frame lock, computer in, resolution, auto keystone, information, V. keystone, whisper, mirror, volume, speaker, audio, language, menu position, OSD bright, blank color, start up, My Screen, My Screen Lock, message, source name, auto search, auto on/off, lamp time, fi lter time, My Button, service menu, security |
| OPERATING CONDITIONS |
Temperature |
41° F to 95° F (5° C to 35° C) |
| Humidity |
10% to 85% (non-condensing) |
| Altitude |
0-60,000 ft+ |
| NOISE LEVEL |
Normal |
36 dB (max) |
| Eco-mode |
30 dB (max) |
DIMENSIONS
(WXHXD) |
Physical |
13.4" x 3.9" x 10.6" (340mm x 100mm x 270mm) |
| WEIGHT |
Net |
7.8 lb. (3.5kg) |
| Gross |
17.0 lb. (7.7 kg) |
| REGULATIONS |
UL 60950, C-UL, FCC-B, UL-DEMKO/GS, CCC, CB, CE, C-TICK, GOST, NOM, PSB, TUV-S |
| OTHER |
Short throw, auto vertical digital keystone correction, progressive scan, 3:2 pull down, auto adjust, remote control, direct off, low noise (30 dB), unplug and go, whiteboard, blackboard, greenboard, daylight mode, adjustable fan speed |
| PACKAGE CONTENTS |
Projector, power cable, VGA cable, S-video cable, remote control with built-in laser, soft case, lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide) |
| WARRANTY |
Three-year limited warranty on parts and labor, first-year Express Exchange® Service. One-year limited warranty on lamp*** |
| RECYCLING/DISPOSAL |
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws. |
|
