ViewSonic PJD6220 DLP Portable Video Projector

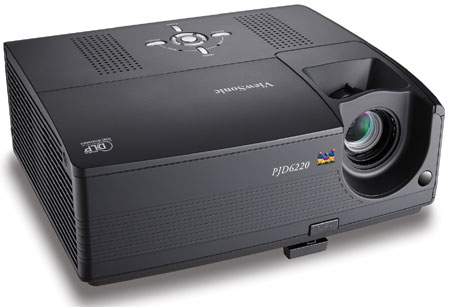

ViewSonic PJD6220 Video Projector

ViewSonic PJD6220 MSRP: $1,199

Overview

The PJD6220 projector is the lightweight DLP® powerhouse that delivers sharp and bright images for virtually any environment. BrilliantColor™ technology produces more vibrant colors, while the high brightness and contrast ratios make this projector shine in most any lighting situation.

This projector is designed for table-top use or can be mounted on the ceiling for classrooms and meeting rooms. RJ-45 connectivity enables remote network control, while the extensive input options and integrated 2x5-watt speakers deliver a truly dynamic multimedia experience. This projector even features closed captioning for the hearing impaired. The Viewsonic PJD6220 projector is ideal for use in classrooms and corporate settings.

Features

  • 2300 ANSI Lumens
  • Native 1024 x 768 XGA Resolution
  • 4:3 Native Aspect Ratio
  • 2000:1 Contrast Ratio
  • Weighs 6.5 lbs
  • Network control through RJ-45
  • Closed captioning
  • Easy lamp replacement
  • Up to 4,000 hours of lamp life

Specifications

DISPLAY Type 0.55” Digital Micromirror Device (DLP®)
Pixel Format XGA 1024x768 (native) / SXGA 1280x1024 (compressed)
Lens 1.1× Manual Optical Zoom / Manual focus
Keystone Vertical Digital keystone correction: +/- 40 degrees
Size 30”-300” (Diagonal) / 0.8m-7.6m
Throw Distance 1.2m-10m (47”-393”)
Throw Ratio 1.97:1~2.16:1
Lamp 180 watt
Lamp Life (Normal / Eco Mode) 3500 / 4000* (hours)
Brightness (max) 2,300 ANSI lumens
Contrast Ratio 2000:1 (typ)
Aspect Ratio 4:3 (native), 16:9
Color Gamut 85% NTSC (CIE 1931)
AUDIO Speakers 2 x 5w
INPUT SIGNAL Computer and Video RGB analog, NTSC M, NTSC 4.43, PAL (B, D, G, H, I, M, N, 60), SECAM, SDTV / EDTV (480i/p, 576i/p), HDTV (720p, 1080i/p)
Frequency Fh: 15-100 KHz, Fv: 43-85 Hz
COMPATIBILITY PC Analog /: VGA up to SXGA (scaled)
Mac®+ Analog /: up to XGA (scaled)
CONNECTOR RGB Input / Output 2 × in / 1× out (15-pin D-sub)
Composite Input 1× RCA jack
S-Video Input 1× 4-pin mini-DIN
Audio Input / Output In ×1 / out ×1 (3.5mm Mini Jack)
USB 1× USB type B (firmware upgrade only)
Control 1× RS232 (6 pin D-Sub)
Network 1×RJ-45
POWER Voltage 100~240VAC (Auto Switching), 50/60Hz (universal)
Consumption 265W (typ.) / 9W (Stand-by mode)
CONTROLS Basic Standby / On, input, menu
OSD Picture: brightness, contrast, color setting, keystone, aspect ratio,image, white intensity, gamma

Computer image: frequency, tracking, H position, V position

Video image: saturation, sharpness, tint

Sound: volume, mute

Setting: menu position, projection, signal type, lamp hour, lamp hour reset, power saving, auto source, ECO mode, high altitude, OSD timeout

Option: blank screen, start-up screen, screen capture, password, DCR, closed caption, network control, BrilliantColor™

Network config: DHCP, IP address, subnet mask, gateway

Factory default
OPERATING CONDITIONS Temperature 32ºF - 104ºF (0ºC - 40ºC)
Humidity 10% to 80% (non-condensing)
Altitude 0 to +10,000 ft (3,048 m)
NOISE LEVEL Normal 36dB
Eco-mode 34dB
DIMENSIONS
 W x H x D 8.93" x 4.3" x 8.77" ( 271mm× 110mm × 223mm)
WEIGHT Net 6.5 lbs (2.9 kg)
Gross 11.1 lbs (5.0 kg)
REGULATIONS CB, UL/cUL, FCC-B, ICES-003, IRAM, NOM, CE, GS, GOST- R, Hygienic, SASO, UKrSEPRO, CCC, C-tick, EK
PACKAGE CONTENTS Projector, Power cable, VGA cable, Remote control with batteries, Composite cable, S-video cable, Soft carrying case, Lens cap, Quick Start Guide, ViewSonic Wizard CD (with User Guide), VGA-component adapter
WARRANTY 3-year limited warranty on parts, 1-year limited warranty on lamp, 1st year Express Exchange® service.
